Blue Spirit Open Line (OP)

Home   /   Blue Spirit Open Line (OP)

Blue Spirit Open Line (OP)

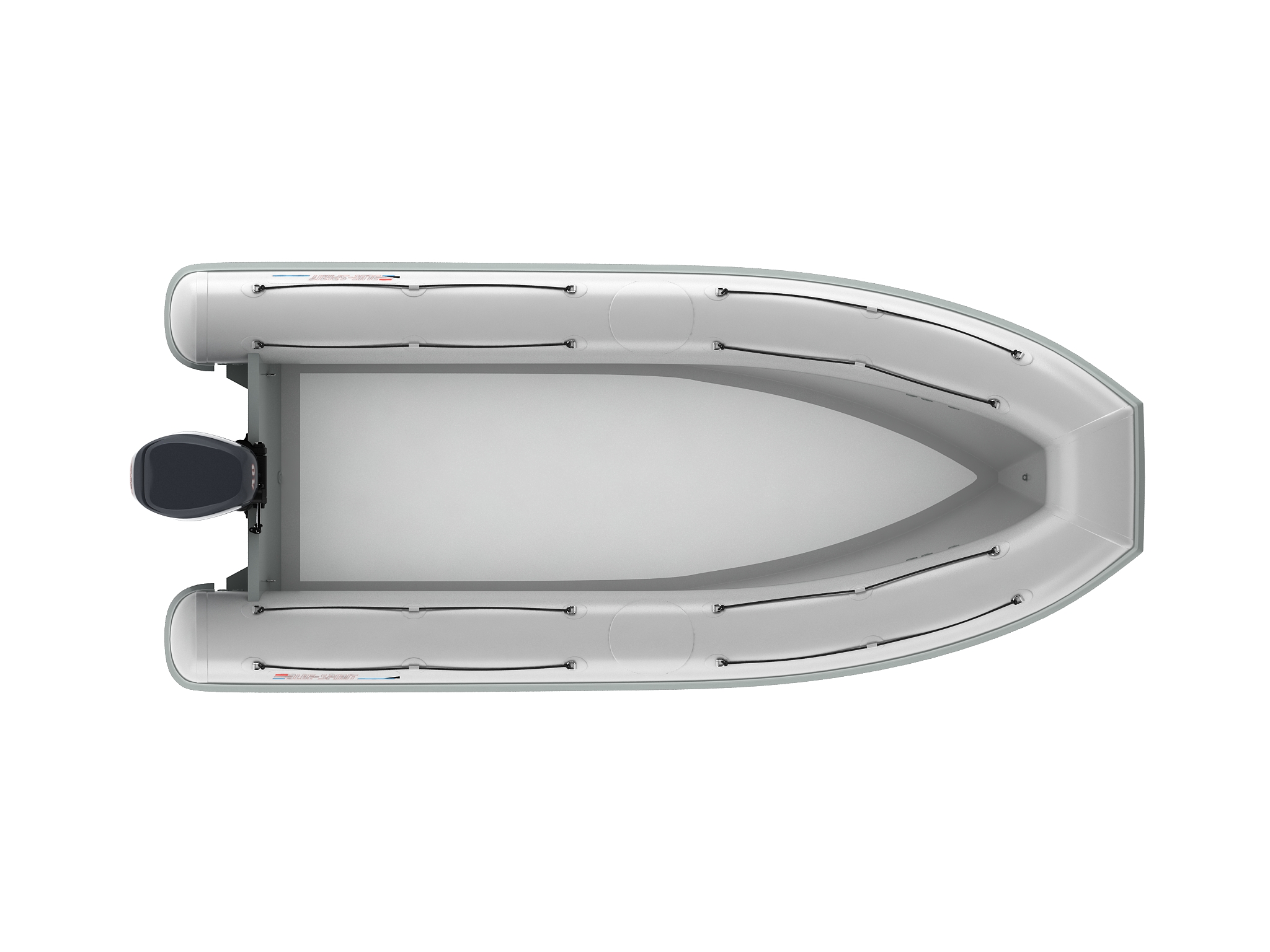

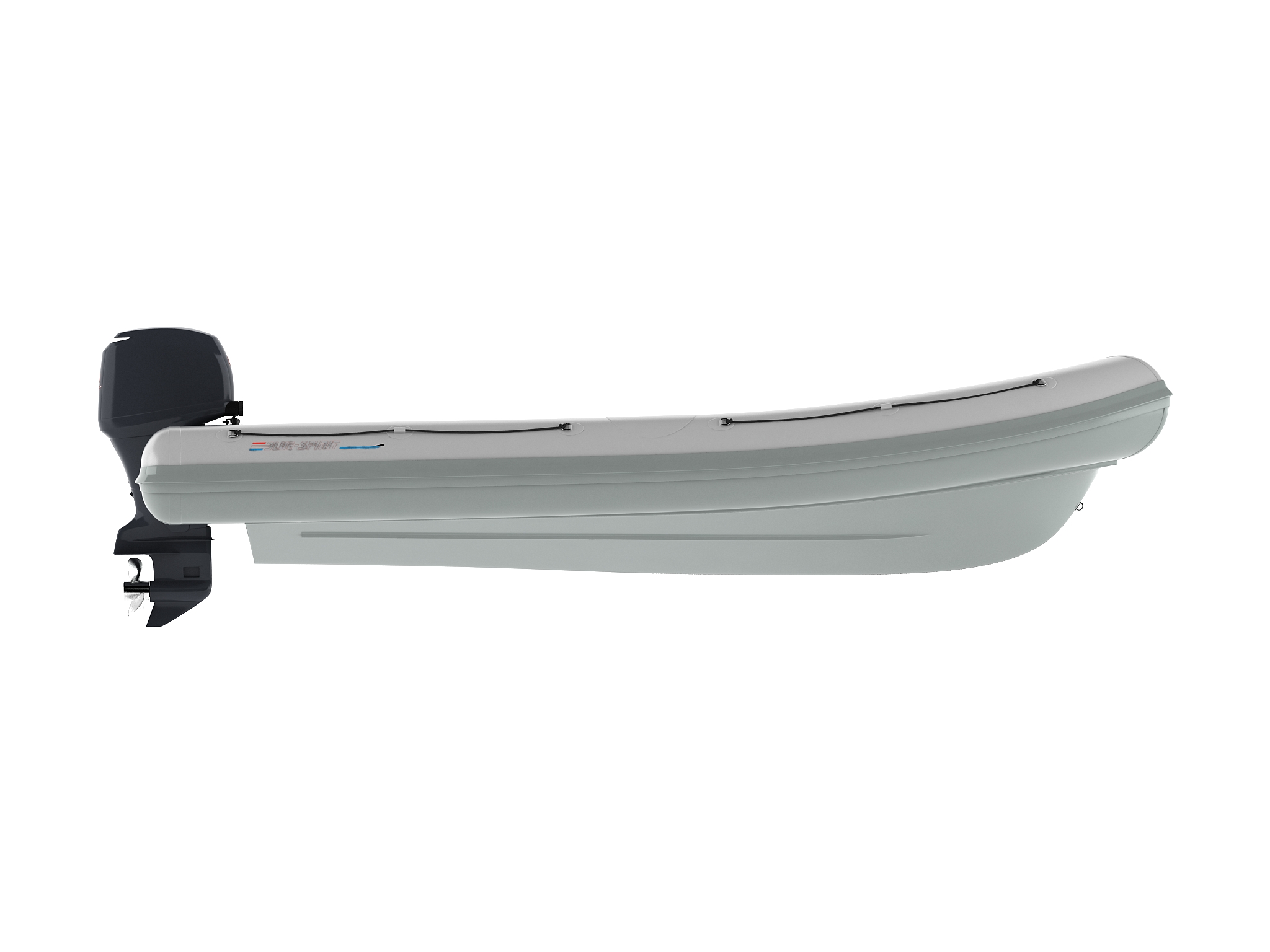

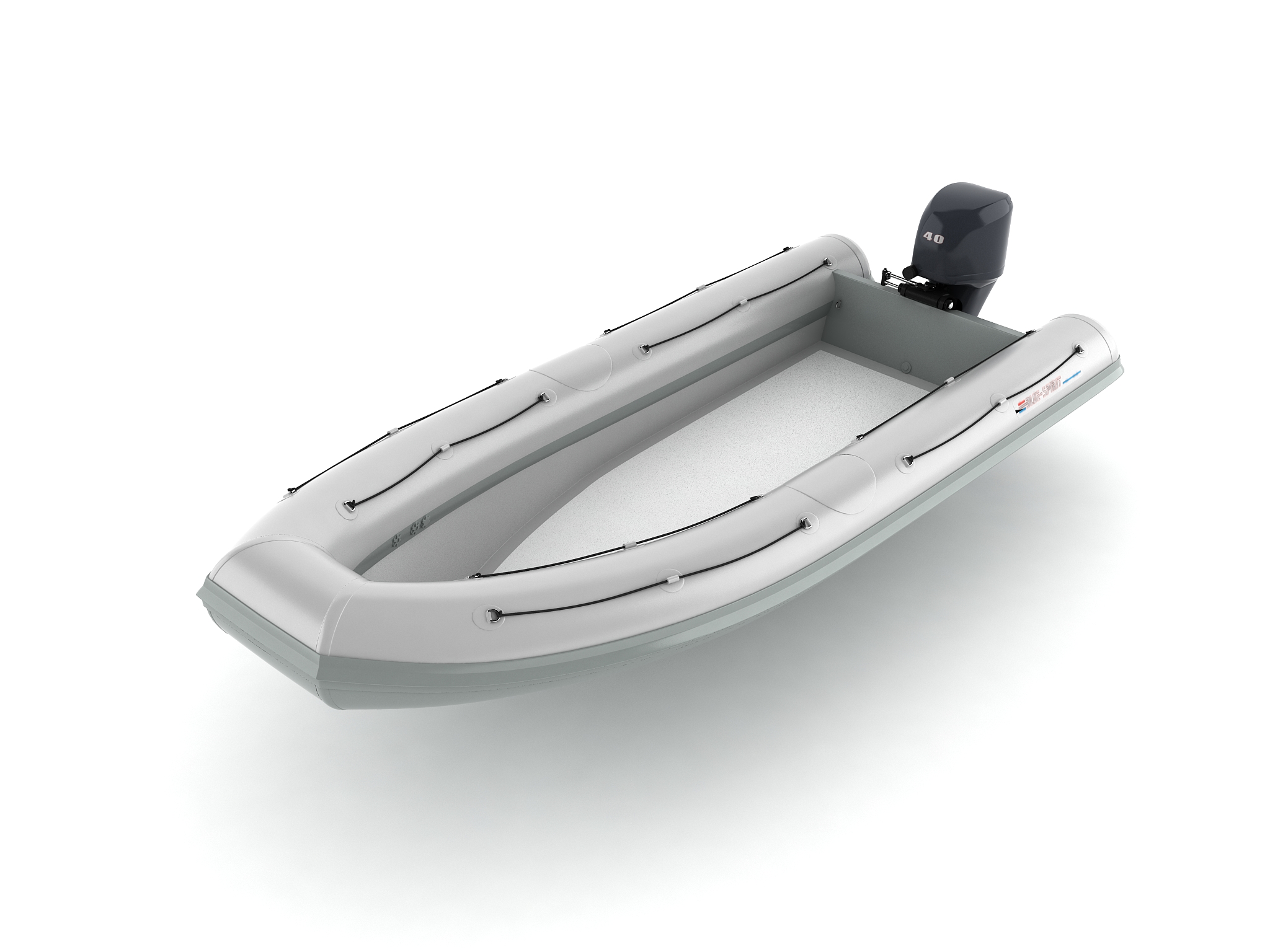

BS_OP90_03BS_OP90_05BS_OP90_06
Click on the image to see the enlarged version.

win win tender 303

All Blue Spirit Open Line (OP) RIBs are equipped with a Hypalon 1670 dtex air collar. The fiberglass hull will be produced by hand lay-up method. Vacuum injection manufacturing is optional. 5 Models are available; the OP40, OP60, OP80, OP90 and OP100 and vary in size from 3.55 till 5.70 meters. The Blue Spirit Open Line RIBs have a capacity of 8 to 14 persons. The Open Line RIBs are standard delivered with anti-sliding deck,3 pcs lifting eyes, drain plugs in hull and from deck, lifelines, overpressure valves , repair kit and foot pump.

Overview of the Rib boat models of the Blue Spirit Open Line (OP)

Type Length (meters) Beam (meters) CE Tube Casco weight Max persons Engine max Hypalon air collar Vacuum injection GRP steering console Jockeyseats
Open 40 3.55m 1.78m C 0.48m 85kg 6 35 hp Yes Yes small or big one or two person(s)
Open 60 4.20m 1.85m C 0.50m 85kg 7 50 hp Yes Yes small or big one or two person(s)
Open 80 4.90m 2.00m C 0.54m 180kg 8 65 hp Yes Yes small or big one or two person(s)
Open 90 5.20m 2.20m D 0.54m 220kg 10 85 hp Yes Yes small or big one or two person(s)
Open 100 5.70m 2.30m D 0.54m 285kg 14 125 hp Yes Yes small or big one or two person(s)

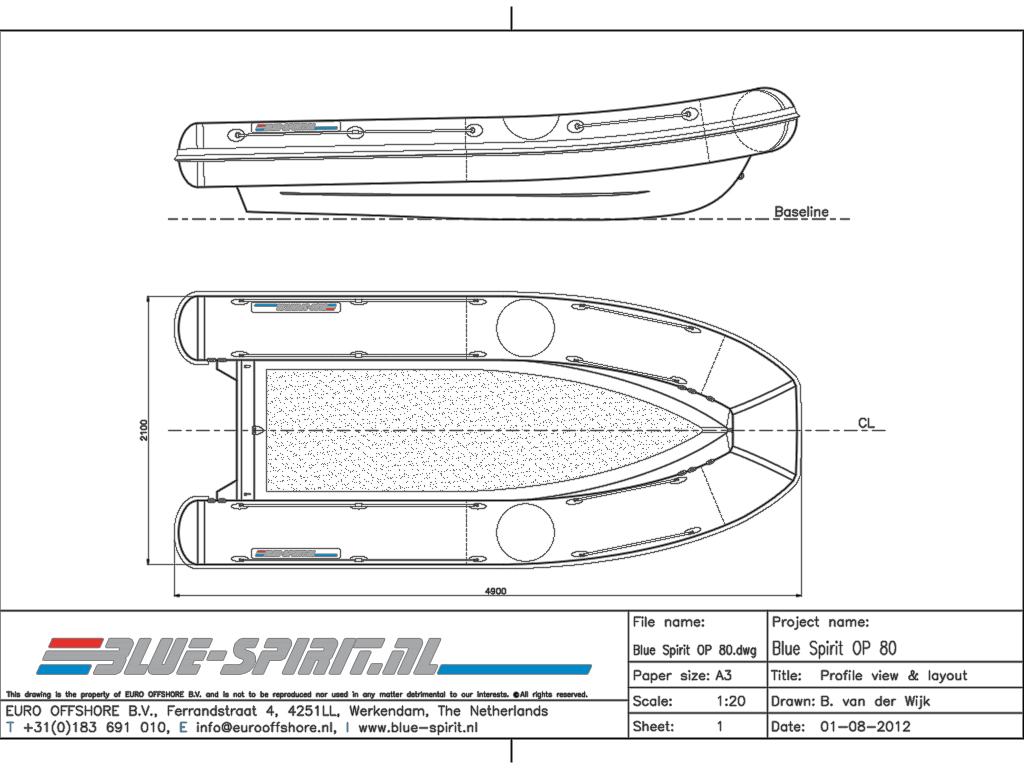

Open 80

linesopen80

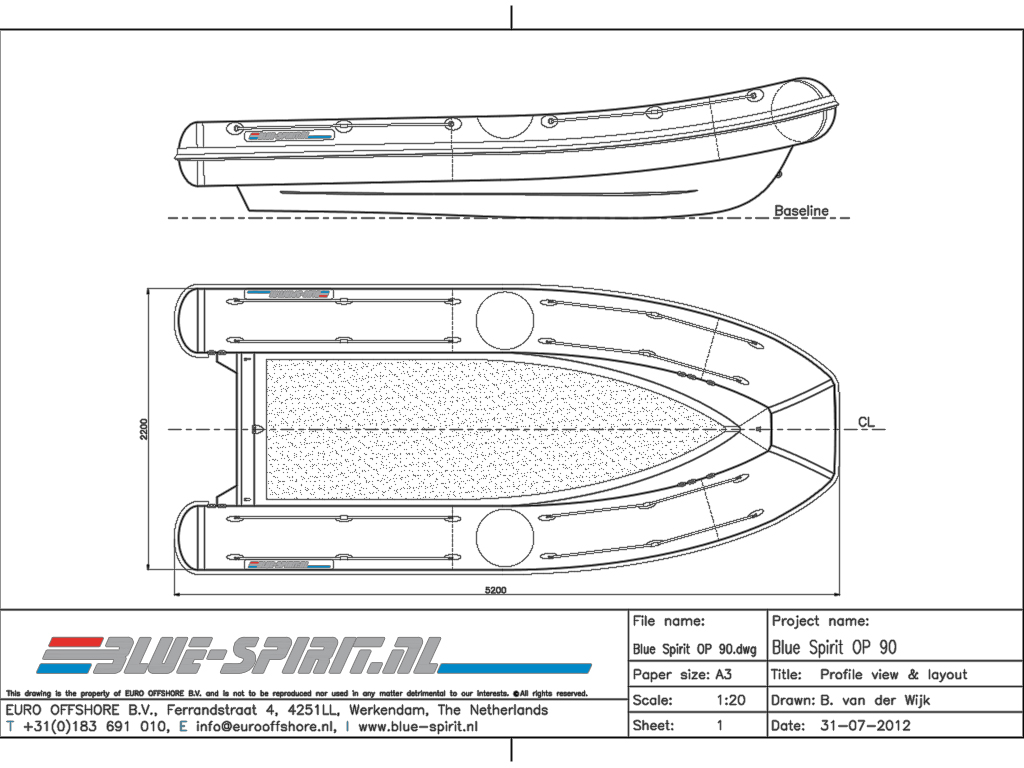

Open 90

linesopen80

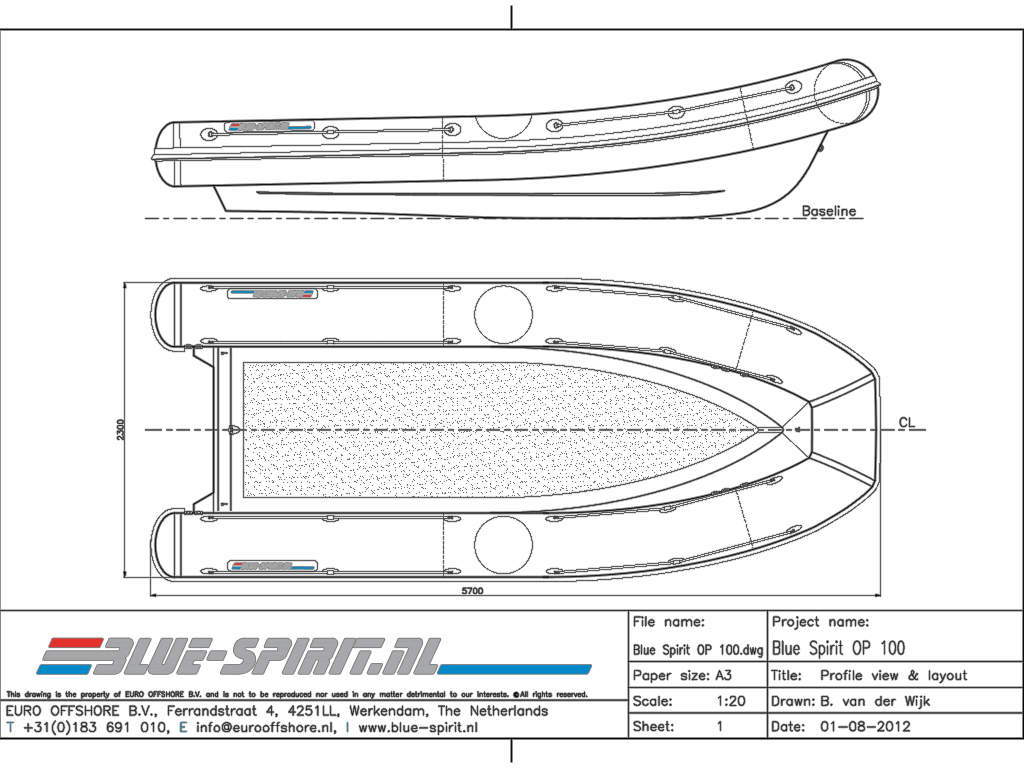

Open 100

linesopen100

Options on all open line boats are:

  • Outboard engine
  • Radar beam
  • Self righting system
  • Steeringconsole
  • Hypalon foam collar
  • PU foam filled fender
  • Jockeyseats
  • Suspension seats
  • Bench
  • GPS, radio, radar, etc
  • Inox keel protection
  • Sun deck
  • Boat cover

Standard Equipment:

  • Casco hull
  • Hypalon Neoprene tube – lifelines – rubbing strake
  • Drain plug
  • Lifting eyes and lifting sling
  • Footpump
  • Paddle set
  • Repair kit

For all standard and optional specifications, download the pdf-icoon-kleinerbrochure.
